Noodle Wrap

MultiPack is proud to be Nestle’s vendor of choice for flow wrap systems that package “Maggi” – India’s #1 brand of instant noodles.

We offer “Integrated servo driven packaging system” (Automatic row feeding, product alignment, row inspection & rejection system and flow wrapping of single noodle / double noodles / four noodles/ six noodles with sachet inserts) solution designed cater to the unique requirements and challenges of this application and its production process including cake size variations, loose crumbs, and sachet slippage resulting in line stoppages and waste.

Designed to meet the pack specification tolerances, enable easy cleaning, most reliable and efficient operation when integrated with advanced production lines with minimal need for operator intervention after setup.

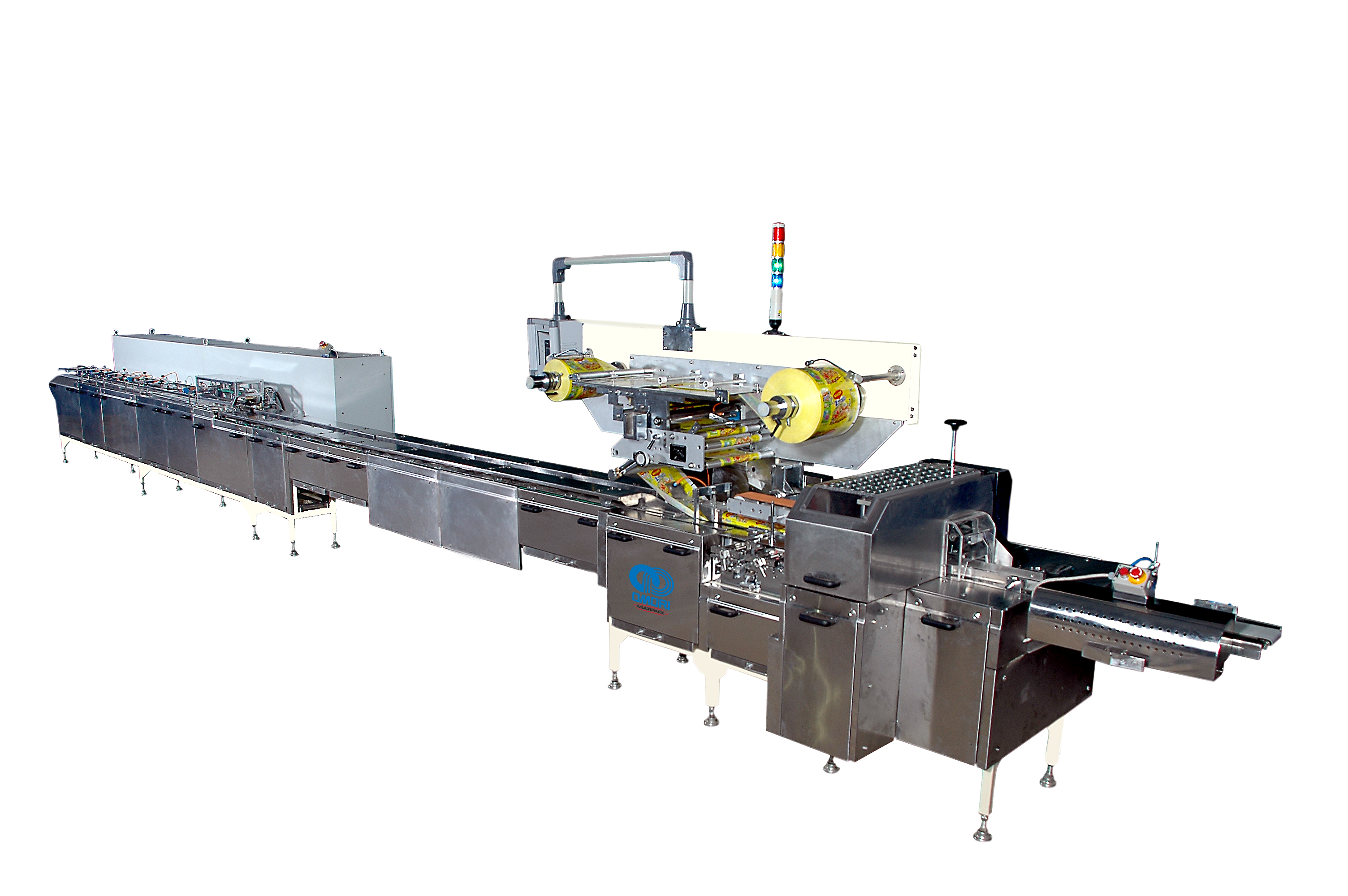

Flow wrap solution integrated with automatic feeding system for wrapping single noodle cakes with sachet inserts at speeds up to 280ppm.

  • Constructed for reliable operation in tough plant conditions
  • Easily accessible, durable electrical panel for long term performance
  • All the ball bearings lubricated & sealed for life time use
  • Special design fin seal compartment with 3-fin roller unit (1 cold, 2 heated)
  • Special jaw profile for high integrity sealing
  • Temperature control of sealing units through PLC
  • Auto roller opening & closing with every start & stop of machine
  • Dwell adjustment in running condition
  • Food contact parts from stainless steel and food grade plastics
  • Transparent Jaw guards with safety interlock
  • System to stop machine in open Jaw condition
  • User-friendly HMI with process diagnostics
  • Adjustable height
  • 24x7x365 telephone support availability
  • “Rapid response” onsite production support availability
  • Training In-plant/Off-site availability
  • Two-way Print mark registration and control
  • Positive wrapper feed drive
  • Registered auto splicing
  • Electronic Dwell system
  • Detachable Pillar head for ease of change over
  • Maintenance Free slip-ring
  • Auto web alignment
  • Air extraction
  • Air Jet / mechanical Gusseting
  • Zig-zag knife
  • End folding device
  • Counting, auto collation & separation at outfeed
  • Extended infeed and outfeed conveyors
  • Auto rejection of Joint and Empty packs
  • No product – No bag
  • Stainless steel guards and covers
  • CE certified
  • Touch screen HMI
  • Remote process diagnostics (direct connectivity)
  • Extended in-plant “live production” support
  • Preventive maintenance contract
Max output 280 packs per min ( single pack )
Max product width 120 mm
Max product height 60 mm
Max product length 270 mm
Product width+Product height <190mm
Wrapper cutoff length 150mm – 375mm
Max reel width 410 mm
Reel Size Max diameter 340 mm or
Reel weight < 20 Kg
Power 20KW
Input voltage 415/380V, 50/60Hz
Machine size L 12m x W 1.8m x H 2 m
Weight 1800Kg
Please Contact Us to discuss requirements that differ from the above specifications.
