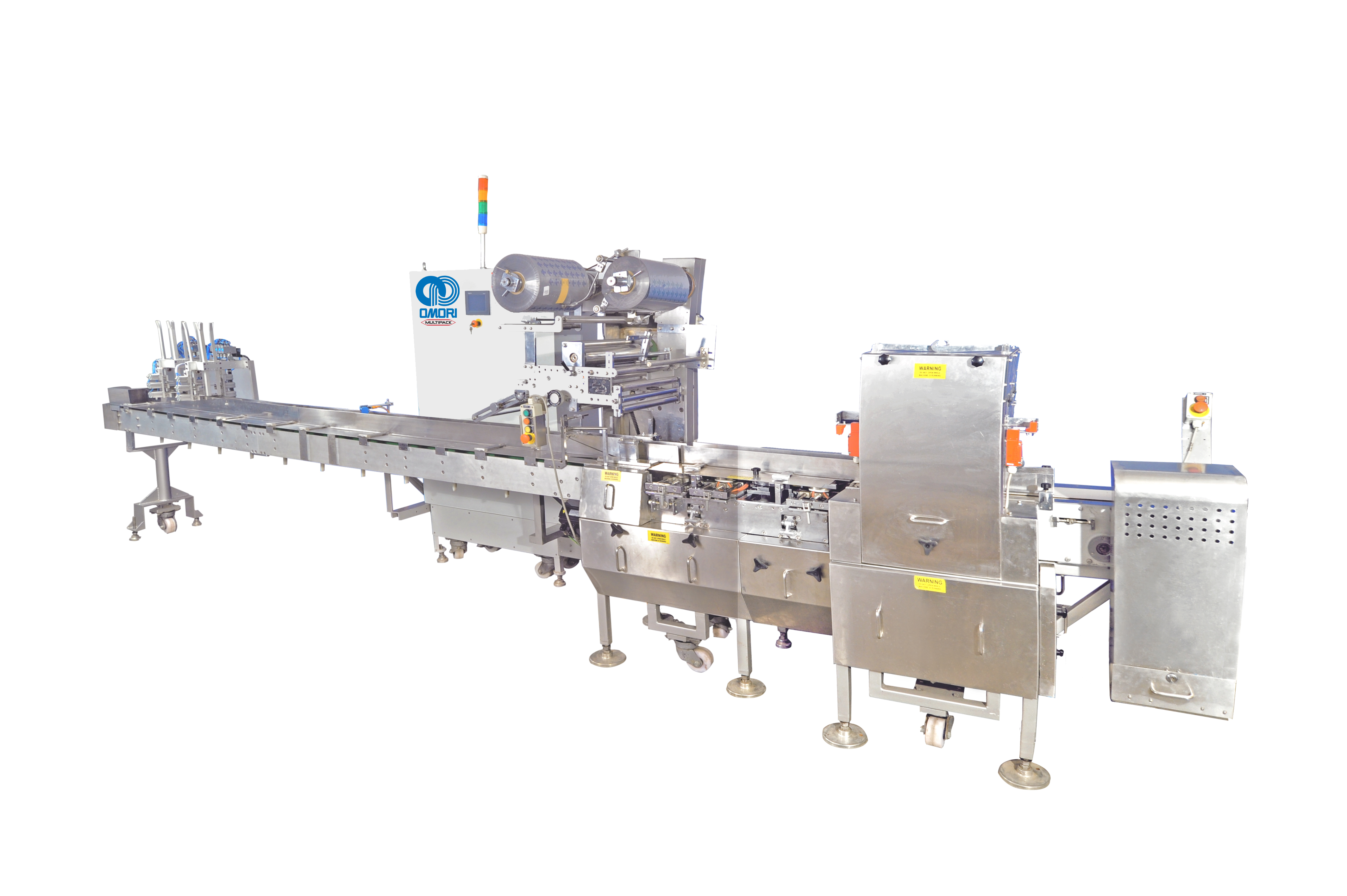

High speed flow wrap solutions can pack Blister in single or double or multiple piles with a speed of up to 500ppm. Options of various automatic or semi-automatic feeding systems are also available. Covering entire range for packaging blister in single or multiple pile, Omori offers different models and the various feeding operation are listed below:
- Automatic Feeding System
- Gravity fed magazine
- Magazine with belt
- Longer in-feed with two magazines on each side of packing conveyor
Versions:
- Right-Left or Left-Right
- Standard or Stainless Steel
- Mechanical or Servo
zoom_in
| Speed | 500 packs/min ( Maximum) |
| Product length in mm | 50-150 |
| Product length in mm | 30-120 |
| Product height in mm | 10-60 |
| (Product width + height) | ≤ 150 |
| Max reel width in mm | 380 mm |
| Max reel diameter in mm | 340 mm |
| The data given above is only for general guidelines. Specification given after evaluation of product & wrapper material will prevail upon this data. | |
- All bearings are lubricated and sealed for life-time use
- Pack transfer conveyor through sealing Jaws
- Temperature control of sealing units through PLC
- Special jaw profile for high integrity sealing
- Dwell adjustment in running condition for Rotary cross sealing jaws
- Product contact parts from stainless steel and food grade plastics
- Transparent Jaw guards with safety interlock
- 10 years parts availability
- “Rapid response” onsite production support availability
- Auto magazine loader
- Auto leaflet feeder
- Auto Silica gel feeder
- Supervision system to check proper no. of Blisters on in a Pile
- Supervision system to check presence of Desiccant on Blister Pile
- Capable to synchronize with Up-stream machine
- Registered auto splicing
- Auto web alignment
- Air jet gusseting
- Date coder provision
- Counting & separation at outfeed
- CE Compliance
- Remote process diagnostics (direct connectivity)
- Extended in-plant "Live production" support
- CFR 21 Compliance
